  • Edelstahl-Bänder

Stainless Steel Hinge, straight, 12 mm roll diameter, 35 mm leaf width

product details

The Stainless Steel Hinge is straight (cranking A) and was developed for blunt-inset doors. It has a roll diameter of 12 mm, a leaf width of 35 mm and a leaf thickness of 2.5 mm.

Our stainless steel hinges are all made of stainless steel. They have a solid stainless steel pin and intermediate ring. Intermediate ring and cylinder head are also available in V4A. On request we also manufacture the whole hinge of V4A. It can be ordered in lengths of 80 mm or 100 mm.

The stainless steel hinge is available with a grinded and brushed or blasted surface. It can be made angular or with six rounded corners.

It is available in the DIN version left (left-hand hinge) or right (right-hand hinge). Which DIN version do I need?

available lengths

80 mm
100 mm


available surfaces

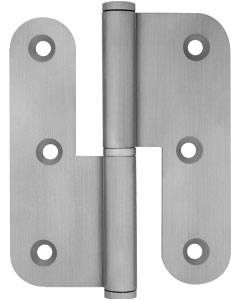

brushed
blasted

technical drawing

Go to catalogue

Find more information, designs and technical information in our catalog.

Download now
